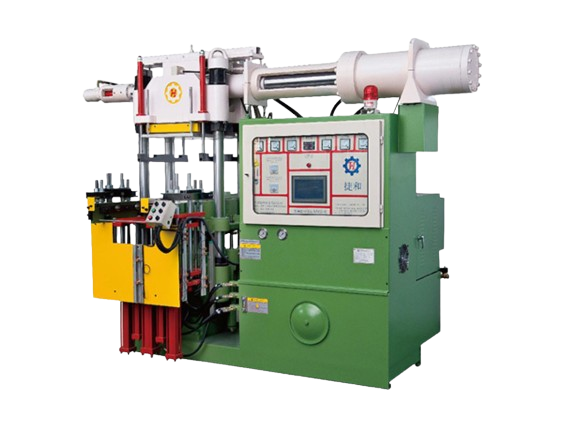

Fully Automatic Vertical Vacuum Injection Molding Machine

Machine Features

  • A new way of Vacuum Injection
  • Enhance the dencity of rubber products, reduced the bad rate, save row materials
  • Reduced heat energy loss, shorten curring time and save energy

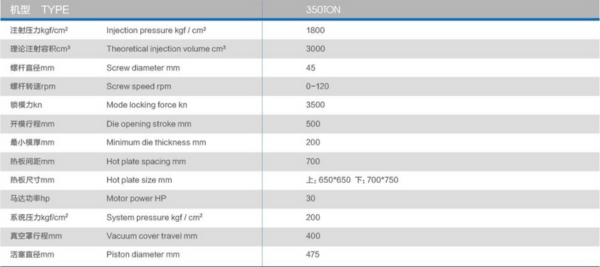

Technical Parameters

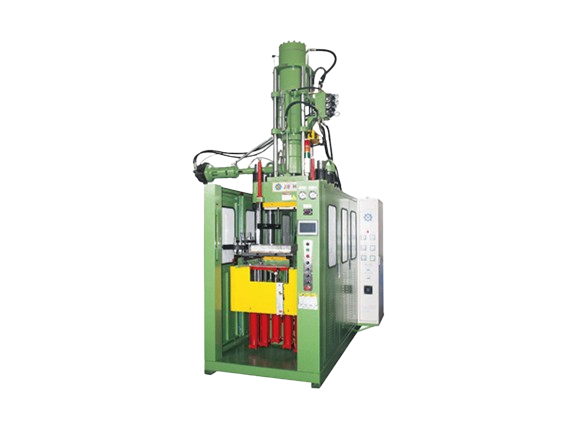

Automatic Series Rubber Injection Molding Machine(FILO)

Machine Features

  • Mechanical design: The machine adopts special mehanical design, the plane preicsion is good, the finished product looks beautiful and the quality is execellent.
  • Feeding system: The special two stage feeding design can make the raw material get the best exhaust effect and the function of undead material.
  • Emission control: The design of electronic ruler with high precision is designed to accurately control and calculate the size of the ejection.
  • Design of a rotating plate: With special seat and seat retreating function, the nozzle can not die. It is easy to clean the material, and the quality is a stable
  • Safety design: Have Japanese high-teh infrared safety electric eye, and has automatic warming system and multiple safety protection device, which can clearly grasp the mahine status, to ensure the safety of.
  • Oil road design: The use of a full scale oil system, low noise and automatically adjust the size of the pressure of the function, accurate and stable.

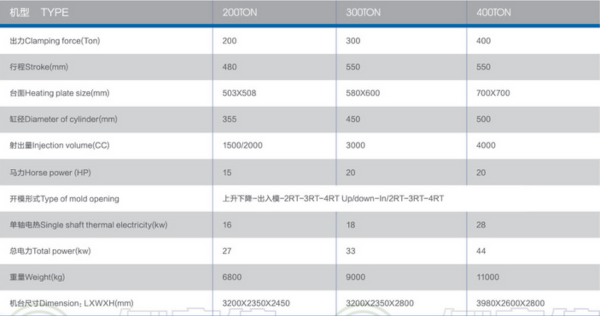

Technical Parameters

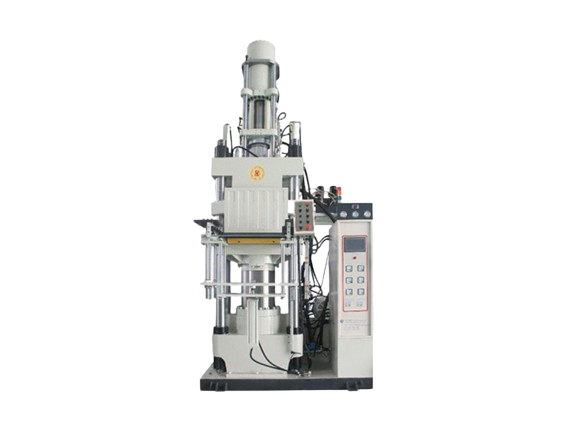

Fully Automatic Vertical Injection Molding Machine (FILO)

Into the feeding device:

  • the patent type barrel screw feeding, continuous feeding and completely exhaust function, improve product quality, refueling and easy to clean material, to adapt to the different kinds and hardness of ruber material.
  • Check device with multi section no fetters injection, velocity and pressure of the random adjustment, not leak material, can meet the requirements of different sizing process and product quality assurance.
  • Temperature control device: two temperature oil system, PID adjustment, to ensure the uniformity of the teperature and control precision.
