Moulding Machines

Welcome to SRP MACHINERY AND SPARES SOLUTION

  • Home
  • Moulding Machines

Fully Automatic Horizontal FIFO Injection Molding Machine

  • Advaned first out injection structure with advanced design concept in Europe and America, the injection force is stable and reliable The optimized ejector rod greatly reduces the amount of leakage, and it is convenient and quick to repair and replace the glue Super large capacity feeding struture, invention patent automatic rotary feeding tube, save time and material, suitable for different colors and different properties of the rubber fast replacement production Full closed safety baffle and grating, higher equipment operation safety grade. Heat plate heating zoning control, the temperature is more uniform. More desktop design, more automatic function for selection.

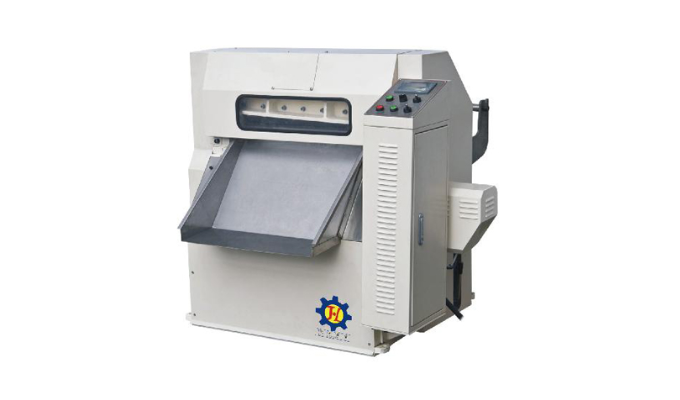

CNC Rubber Material Cutting Machine

NAME PARAMETER
Horsepower 2.2kw
Machine Size:L*WxH(mm) 1080*900*1230
Machine Weight 620kg
Rubber Cutting width 1mm-50mm
Rubber Cutting Length ≤580mm
Rubber Cutting Thickness ≤12mm
Electric Control System PLC Pulse Generator
Counter Liquid crystal display, can be used to set 1-9999 LCD 1-9999
Structure Casting type side plate and bottom plate , strength and good stability
Performance When the glue is quiet and silent , cutting glue accurately 100%

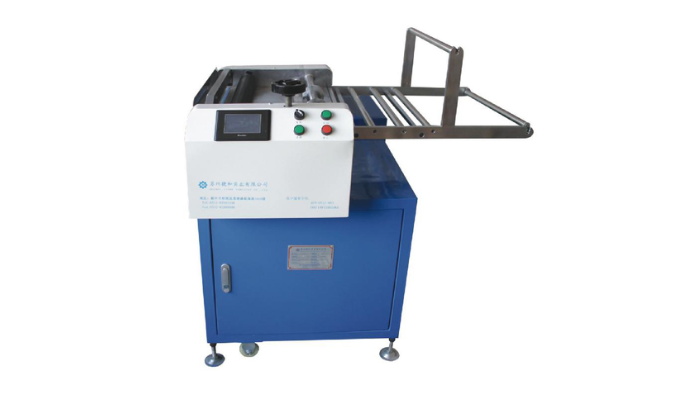

CNC Silicone Cutting Machine

Computer Numerical Control Sillicone Material Cutting Machine

  • Cutting width 500, cutting length 0.1~300mm, cutting thickness 10mm (silione)
  • 200V, 50HZ, cutting motor 120W
  • The cutting blade reciprocates 85-100 times/min. High preccision motor, the angle is 0.6/1.2, 20Nm.
  • Dimension: 1100*800*960mm Gross weight: 190kg
  • Multi-cutting cycle
  • Control system: PLC Plusemodulation
  • Counter: LED
